How to Set Up a Complete Production Line for Packaged Mineral Water Cups?

Starting a packaged water business feels overwhelming. You might miss a key step, wasting money and time. I will show you the exact four stages to get it right.

To set up a complete production line for packaged drinking water cups¹, you need four key stages. These are water treatment², cup making or sourcing, cup filling and sealing³, and finally, cartoning or packing⁴ the finished products. Each stage requires specific machinery and planning.

I have helped many clients build their production lines from zero. It can seem complex at first. But when you break it down into these four stages, it becomes very clear and manageable. I see my role as not just selling machines, but helping you build a successful business. Let’s look at each stage one by one. This will help you understand how to build your own production line.

What Is the First Step in Water Treatment?

Using untreated water will ruin your product’s quality and your brand’s reputation. The risks are high, from safety issues⁵ to bad taste. Proper water treatment ensures a safe, high-quality product.

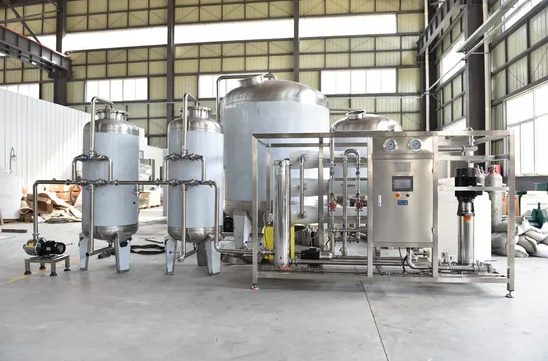

The first step is water treatment². You must use special equipment to process your source water, like mineral water or tap water. This makes sure the water is clean, safe, and meets all health standards before it goes into the filling machine⁶.

This is the foundation of your entire operation. You cannot compromise on water quality. I remember a client in Algeria who wanted to start small. He thought he could skip a full water treatment system to save money. A few months later, he called me. His customers were complaining about the taste, and he had to recall his first batch. It was a costly mistake. We quickly helped him install a proper system. Your water source determines the type of treatment you need.

Key Water Treatment Processes

Treatment Method	Main Purpose	Best For
Reverse Osmosis (RO)7	Removes dissolved salts, minerals, and impurities.	Purifying tap water or brackish water.
Filtration	Removes suspended particles, sand, and rust.	Pre-treatment for all water sources.
UV Sterilization8	Kills bacteria, viruses, and other microbes.	Final safety step before filling.

Most complete systems I recommend use all three methods. Filtration cleans the big particles first. Then, Reverse Osmosis purifies the water at a molecular level. Finally, UV sterilization acts as a final guard to kill any remaining microorganisms right before filling. This ensures the water you package is absolutely pure and safe for your customers.

Should You Make Your Own Cups or Buy Them?

Choosing your cup supply method is a big decision. Making your own cups needs a large investment. But buying them can lower your profit margins. I will help you decide.

You have two choices. You can make your own PP cups⁹ with a cup-making machine. Or you can buy ready-made cups from a supplier. For new businesses, buying cups is often cheaper to start. For larger companies, making your own gives you more control.

This choice really depends on your business scale and your budget. There is no single right answer, only what is right for you. A few years ago, I worked with a startup in Indonesia. They were just entering the market. I advised them to buy pre-made cups first. This allowed them to put more of their initial money into the filling machine and marketing. They grew very fast. After two years, they came back to us and bought a thermoforming machine¹⁰ to make their own cups. By then, their production volume was high enough to justify the investment. It saved them money in the long run.

Comparing Your Options

Factor	Making Your Own Cups	Buying Pre-made Cups
Initial Investment	High (need a cup-making machine)	Low (no machine cost)
Cost Per Cup	Lower in the long run	Higher
Flexibility	High (you can create custom sizes and designs)	Low (limited to supplier’s stock)
Supply Chain	You control production	You depend on a third-party supplier
Best For	High-volume, established producers	Startups and small-to-medium businesses

Most water cups are made from PP (Polypropylene) because it is strong, safe, and handles the heat-sealing process well. When you decide to make your own cups, we can help you find the right machine for your needs.

How Does the Cup Filling and Sealing Process Work?

Manually filling and sealing cups is slow and not clean. This leads to low production and possible contamination. An automatic machine is the key to growing your business safely and fast.

The process is fully automatic with our cup filling and sealing machine. It starts with automatic cup dropping, then UV sterilization, water filling, placing a film lid, heat sealing the lid, and finally, pushing out the finished cup.

This is where our expertise at Xinchuang Machinery really shines. Our machines are the heart of the production line. They are designed to be stable, hygienic, and efficient. I have seen our machines run for years in factories in places like Pakistan and Vietnam with very little downtime. The entire process happens inside the machine without any human hands touching the product. Let’s break down the steps our machine performs.

The Automatic Filling and Sealing Cycle

Step 1: Automatic Cup Dropping

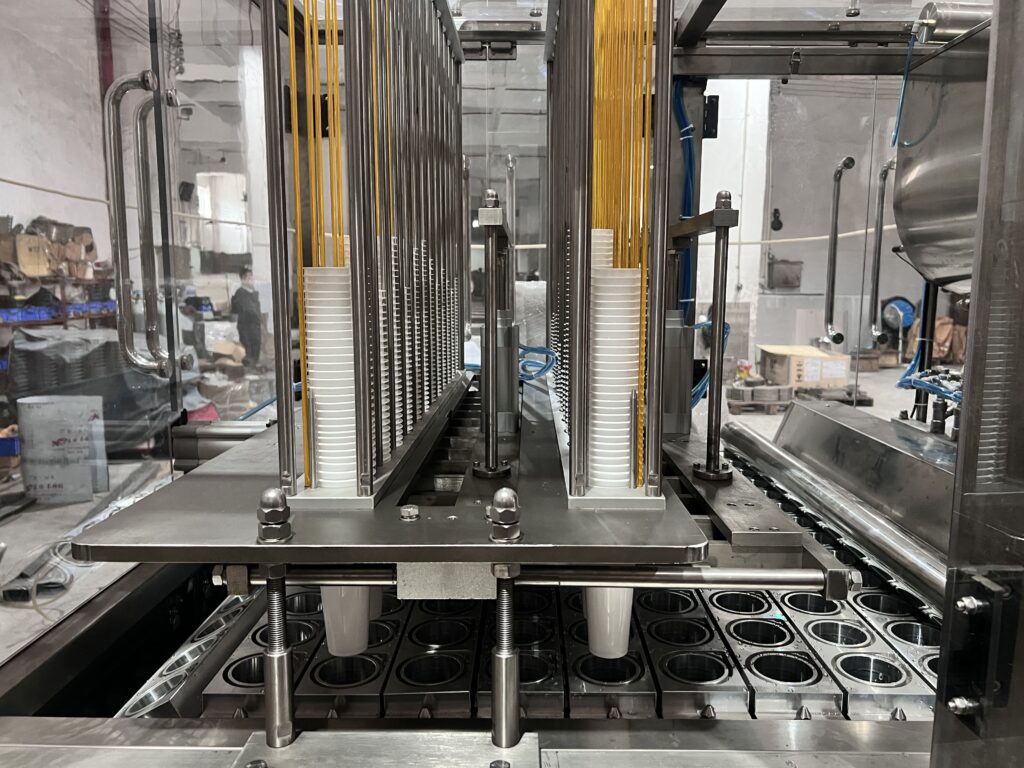

The machine takes one empty cup at a time from a stack and places it perfectly into the machine’s conveyor mold.

Step 2: UV Sterilization⁸
As the cup moves forward, it passes under a UV lamp. This sterilizes the inside of the cup, killing any germs.

Step 3: Precise Water Filling
A piston filler puts the exact amount of water into each cup. This is very important for consistency and controlling costs. We can adjust the filling volume for you.

Step 4: Film Placing and Sealing
The machine places a pre-cut foil or film lid on top of the cup. Then, a heated sealing head presses down, creating a tight, leak-proof seal.

Step 5: Cup Discharge
The finished, sealed cup is automatically pushed out of the machine onto a conveyor belt, ready for packing.

This automated process is not just fast, it’s also critical for food safety¹¹. It ensures every cup is filled and sealed in a clean environment, giving you a professional, high-quality product.

What Are Your Options for Final Packaging?

Your filled cups are ready, but how do you get them to the market? Bad packaging can lead to damaged products and looks unprofessional. You need a good method that fits your budget.

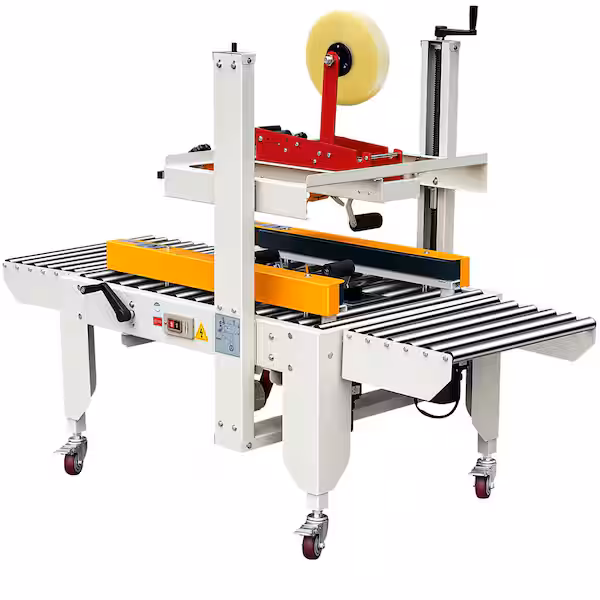

For the final packing stage, your choice depends on your budget and needs. You can start with manual packing¹². For more speed, you can use automatic machines like robotic arms to put cups in boxes and a carton sealer¹³ to close them.

The final step is getting your cups into boxes for shipping. I always tell my clients, especially those in competitive markets like India or Nigeria, that how you pack is a balance between cost and speed. You don’t have to automate everything on day one. A client in Russia started by having workers pack the cups into cartons by hand. It worked well for their initial volume. As their sales grew, they found that manual packing was becoming a bottleneck. They couldn’t pack as fast as the filling machine⁶ was producing. So, they invested in a carton sealer. This simple machine sealed the boxes automatically and sped things up. Later, they added a robotic arm for a fully automatic line.

Manual vs. Automated Packing

Aspect	Manual Packing	Automated Packing
Speed	Slow, depends on number of workers	Very fast and consistent
Initial Cost	Very low	High (requires investment in machinery)
Labor Cost	High in the long term	Low, reduces need for many workers
Consistency	Can be inconsistent, risk of human error	Highly consistent and professional finish
Good For	Startups, low-volume production, tight budgets	High-volume production, businesses focused on scaling

Your choice here is about your growth plan. You can start simple and add more automation as your business succeeds. We can help you plan for this growth, ensuring the machines you add later will work perfectly with the equipment you buy today.

Conclusion

Setting up a water cup line involves four stages: water treatment², cup supply, filling and sealing, and final packaging. My team and I can help you build your perfect line.

---
