What Are the Benefits of a CIP (Clean-in-Place) System for a Cup Filler?

Struggling with contamination risks in your filling line? Manual cleaning is slow and unreliable. A CIP system¹ for your cup filler ensures consistent hygiene and protects your product’s quality.

A CIP system for a cup filler automates the cleaning process. This drastically reduces contamination risks, which is vital for dairy and beverage products. It improves hygiene, saves labor, cuts downtime, and ensures your product quality remains high and consistent, protecting both your brand and your customers.

You see the main benefits, but how does this technology actually work? And what does it mean for your daily operations? I have seen many clients, from dairy producers in India to beverage makers in South Africa, completely transform their production lines with this. It’s more than just cleaning; it’s about making your entire process more robust and reliable. Let’s break down exactly how a CIP system can elevate your production line and what you need to know about it.

How Does a CIP System Improve Hygiene and Product Safety?

Worried about unseen bacteria in your filling line? Inconsistent manual cleaning can ruin entire batches. A CIP system provides automated, repeatable cleaning, ensuring your products are always safe for consumers.

A CIP system drastically improves hygiene by using automated, high-velocity flows² of cleaning agents and hot water. This process systematically removes all product residues and sanitizes every surface. It eliminates human error, preventing microbial growth³ and ensuring a level of cleanliness that manual methods simply cannot match.

The CIP Cleaning Cycle

A CIP system follows a strict, pre-programmed sequence. It starts with an initial water rinse to flush out loose product. Then, it circulates a hot caustic wash to break down fats and proteins. This is often followed by an acid wash to remove mineral deposits. Finally, a last rinse with clean water ensures no chemical residue is left behind. This entire process happens at controlled temperatures and flow rates, which are crucial for effective sanitization. This automated precision is especially important for products like yogurt or milk, where even tiny amounts of bacteria can spoil an entire production run. The system ensures every cleaning cycle is as effective as the last one.

Eliminating Human Error

Manual cleaning depends heavily on the person doing the job. One day they might be thorough, the next they might be tired and miss a spot. A CIP system removes this variable. I remember a client in Pakistan who produced fresh juice. They constantly battled inconsistent shelf life. After they integrated our CIP-ready filler⁴, their spoilage rate dropped to almost zero. Why? Because the machine performed the exact same perfect cleaning cycle every single time. There were no "off" days.

Feature	Manual Cleaning	CIP System
Consistency	Varies by operator	Highly consistent & repeatable
Effectiveness	Risk of missed spots	Thorough, full-surface cleaning
Contamination Risk	High	Very Low
Safety	Chemical exposure for staff	Contained, automated process

How Does a CIP-Ready Filler Actually Work on My Production Line?

Thinking about CIP feels complicated and expensive? The thought of overhauling your entire setup is daunting. Our cup fillers are simply designed to connect directly into your existing CIP system.

Our cup fillers are ‘CIP-ready.’ This means the filler hopper and pathways are specially designed to connect to your central CIP system. It doesn’t clean by itself. Your main system pumps the cleaning solutions through the machine, ensuring a seamless and integrated cleaning routine without extra equipment.

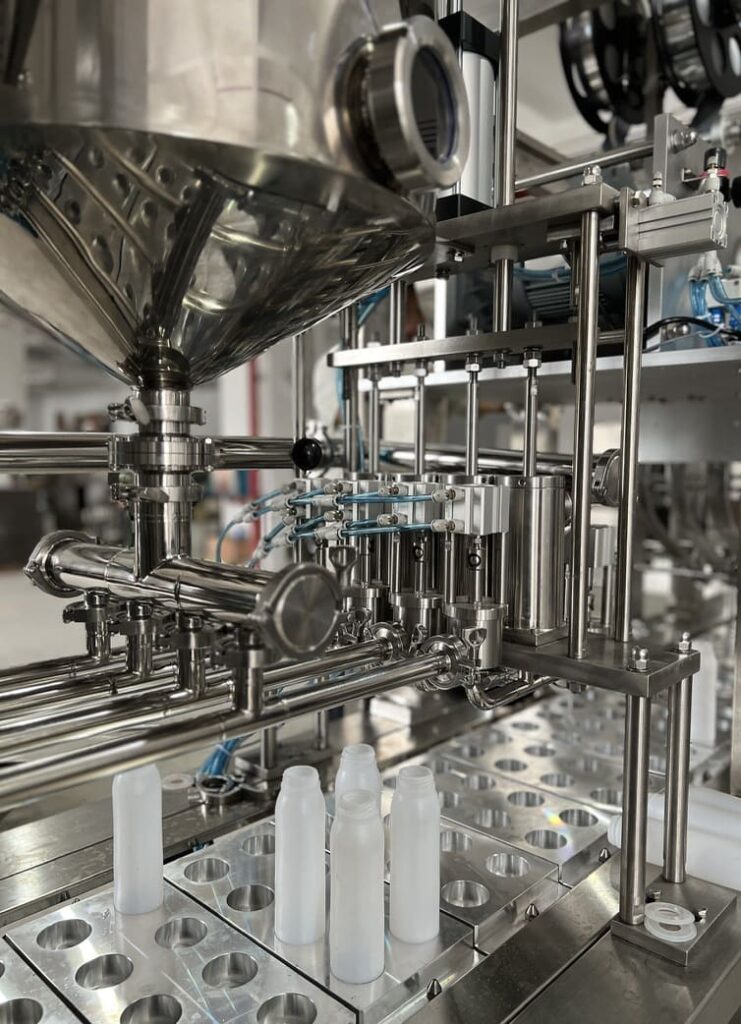

Design of a CIP-Ready Hopper

It is very important to understand this point. Our cup filling and sealing machines do not come with their own built-in CIP system. Instead, they are designed to be part of your factory’s larger CIP circuit. The filling hopper on our machine is constructed for this purpose. It has smooth, polished internal surfaces with no sharp corners or "dead legs" where product could get trapped. It will also have a special inlet port to receive the cleaning fluids from your central system and a spray ball inside. This spray ball ensures the cleaning solutions are sprayed evenly across all internal surfaces of the hopper for a complete clean.

Integrating with Your Central System

The integration is quite straightforward. A sauce producer I work with in Algeria already had a central CIP system for their large mixing tanks. When they bought a spout pouch filling machine from us, their engineers simply added a new set of pipes and valves from their central CIP unit to our machine. When it is time to clean, the operator just selects the "pouch filler" route on their main CIP control panel. The central system then automatically sends water, detergent, and rinse water through our machine. This saved them a lot of money because they did not need to buy a separate, standalone cleaning unit.

Component	Function in the CIP Process
Central CIP Skid	Stores, heats, and pumps cleaning fluids (water, caustic, acid).
CIP Supply/Return Lines	Pipes connecting the central skid to the cup filler.
CIP-Ready Hopper	Receives cleaning fluids via a dedicated inlet port.
Spray Balls (in hopper)	Distributes fluids to ensure full coverage of internal surfaces.
Filling Nozzles & Valves	Are flushed and cleaned as the fluids pass through them.

What Are the Long-Term Business Benefits of Using a CIP System?

Are hidden costs from manual cleaning hurting your profits? Labor, wasted water, and excessive downtime add up. A CIP system reduces these costs and boosts your filler’s overall efficiency.

Beyond hygiene, a CIP system delivers major business advantages. It cuts labor costs and optimizes water and chemical use. Faster, automated cleaning reduces downtime, increasing your production hours. This boosts overall efficiency and profitability, providing a clear return on investment for your production line.

Calculating Your ROI

The return on investment⁵ (ROI) is very clear. Manual cleaning is expensive. You pay for the labor hours, but also for wasted water and excessive chemical use. A CIP system uses a precise, measured amount of everything, every time. A customer in Indonesia who produces juice told me they logged their cleaning data. They found that switching to CIP saved them two hours of labor per shift and cut their water consumption for cleaning by 40%. This reduction in downtime was the biggest benefit. It allowed them to run an extra batch of product every day, directly increasing their output and revenue without needing to buy a second machine.

Meeting International Standards

For my clients who export to Europe or other regions with strict regulations, CIP is not just a benefit; it’s a necessity. Food safety standards like HACCP and GMP⁶ require processes that are controllable, repeatable, and documented. A CIP system provides all of this. The system can log data for every cleaning cycle – temperatures, times, and concentrations. This gives you a complete record to show auditors and customers that your equipment is cleaned to the highest standard. It builds trust and opens doors to new markets.

Cost Factor	Manual Cleaning	With CIP System
Labor	High (2-3 staff members)	Low (1 operator to start the cycle)
Water & Chemicals	High & Inconsistent Usage	Optimized & Measured Usage
Downtime	Long (hours)	Short & Predictable (minutes)
Production Capacity	Reduced by cleaning time	Maximized Uptime

Conclusion

Integrating a CIP-ready cup filler is a smart investment. It improves hygiene, ensures product safety, and boosts efficiency, giving you a stronger, more profitable, and more reliable production line.
